spring boot连接数据库

Posted by LQFGH on August 17, 2019

[TOC]

#

ⅠJDBC

一：添加依赖

1
2
3
4
5
6
7
8
9

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

二：配置

1
2
3
4
5
6
7
8
9
10
11

server:
  port: 8080
spring:
  application:
    name: boot-jdbc
  datasource:
    username: root
    password: 1230
    url: jdbc:mysql://liqingfeng.com:3306/springboot?useSSL=false
    driver-class-name: com.mysql.jdbc.Driver

二：自动配置原理

  • 自动配置类：DataSourceAutoConfiguration

  • Properties 类：DataSourceProperties
  • jdbctemplate自动配置类：JdbcTemplateAutoConfiguration
1
2
3
4
5
6
7
8
9
10
11
12

@Configuration
@ConditionalOnClass({ DataSource.class, EmbeddedDatabaseType.class })
@EnableConfigurationProperties(DataSourceProperties.class)
@Import({ Registrar.class, DataSourcePoolMetadataProvidersConfiguration.class })
public class DataSourceAutoConfiguration {
    @Bean
	@ConditionalOnMissingBean
	public DataSourceInitializer dataSourceInitializer(DataSourceProperties
                                                       properties,
			ApplicationContext applicationContext) {
		return new DataSourceInitializer(properties, applicationContext);
	}

这里是数据源自动配置类注入容器的一些组件，接下来我们就看看这些组件都起到了什么作用

DataSourceProperties
1

@EnableConfigurationProperties(DataSourceProperties.class)

导入配置属性类，就不多说了

Registrar
1

@Import({ Registrar.class, DataSourcePoolMetadataProvidersConfiguration.class })

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

	static class Registrar implements ImportBeanDefinitionRegistrar {

		private static final String BEAN_NAME = "dataSourceInitializerPostProcessor";

		@Override
		public void registerBeanDefinitions(AnnotationMetadata
                                            importingClassMetadata,
				BeanDefinitionRegistry registry) {
			if (!registry.containsBeanDefinition(BEAN_NAME)) {
				GenericBeanDefinition beanDefinition = new GenericBeanDefinition();
				beanDefinition.setBeanClass(DataSourceInitializerPostProcessor.class);
				beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
			// We don't need this one to be post processed otherwise it can cause a
			// cascade of bean instantiation that we would rather avoid.
				beanDefinition.setSynthetic(true);
				registry.registerBeanDefinition(BEAN_NAME, beanDefinition);
			}
		}

	}

Registrar 类实现了 ImportBeanDefinitionRegistrar ，实现了 registerBeanDefinitions 主要作用是在容器中添加 DataSourceInitializerPostProcessor 类

1
2
3
4
5
6
7
8
9
10

class DataSourceInitializerPostProcessor implements BeanPostProcessor, Ordered {
    @Override
	public Object postProcessAfterInitialization(Object bean, String beanName)
			throws BeansException {
		if (bean instanceof DataSource) {
			// force initialization of this bean as soon as we see a DataSource
			this.beanFactory.getBean(DataSourceInitializer.class);
		}
		return bean;
	}

DataSourceInitializerPostProcessor 类主要是把容器中的所有 DataSource 类型的组件强制初始化

DataSourcePoolMetadataProvidersConfiguration
1

@Import({ Registrar.class, DataSourcePoolMetadataProvidersConfiguration.class })

由 DataSourcePoolMetadataProvidersConfiguration 代码可以看出这个类主要是向容器中注入注入数据源，

由此也可以看出spring boot默认支持的连接池有 org.apache.tomcat.jdbc.pool.DataSource (默认)、HikariDataSource、org.apache.commons.dbcp.BasicDataSource、org.apache.commons.dbcp2.BasicDataSource 、自定义数据源 ，可以使用 spring boot 的 spring.datasource.type 配置修改数据源的类型

DataSourceInitializer
1
2
3
4
5
6
7

 	@Bean
	@ConditionalOnMissingBean
	public DataSourceInitializer dataSourceInitializer(DataSourceProperties
                                                       properties,
			ApplicationContext applicationContext) {
		return new DataSourceInitializer(properties, applicationContext);
	}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

class DataSourceInitializer implements ApplicationListener<DataSourceInitializedEvent> {

    @PostConstruct
	public void init() {
		if (!this.properties.isInitialize()) {
			logger.debug("Initialization disabled (not running DDL scripts)");
			return;
		}
		if (this.applicationContext.getBeanNamesForType(DataSource.class, false,
				false).length > 0) {
			this.dataSource = this.applicationContext.getBean(DataSource.class);
		}
		if (this.dataSource == null) {
			logger.debug("No DataSource found so not initializing");
			return;
		}
		runSchemaScripts();
	}

    @Override
	public void onApplicationEvent(DataSourceInitializedEvent event) {
		if (!this.properties.isInitialize()) {
			logger.debug("Initialization disabled (not running data scripts)");
			return;
		}
		// NOTE the event can happen more than once and
		// the event datasource is not used here
		if (!this.initialized) {
			runDataScripts();
			this.initialized = true;
		}
	}

DataSourceInitializer 实现了 ApplicationListener 接口，实现了 onApplicationEvent 方法，该方法中

runDataScripts() 初始化所有 classpath 目录下 data.sql 、data-all.sql脚本和配置文件中配置的 spring.datasource.data 的脚本

该类中还有一个 init 方法，标注了 @PostConstruct 注解，该注解是 JRS250 规范的注解就相当于spring中创建bean时指定的 init-method 方法（构造器之后）

Ⅰ：druid 配置

一：添加依赖

1
2
3
4

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>

二：属性配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

spring:
  application:
    name: boot-jdbc
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
  druid:
    url: jdbc:mysql://liqingfeng.com:3306/springboot?useSSL=false
    username: root
    password: 1230
    initial-size: 1
    min-idle: 1
    max-active: 5
    max-wait: 3000
    use-unfair-lock: true
    time-between-eviction-runs-millis: 10000
    min-evictable-idle-time-millis: 30000
    validation-query: select '1'
    connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
    use-global-data-source-stat: true
    max-pool-prepared-statement-per-connection-size: 10
    filters: stat,wall,slf4j
    pool-prepared-statements: true

这里的 filters 一定要配置，否则 druid 的 SQL 不能生效

三：让配置的属性生效

1
2
3
4
5

    @ConfigurationProperties(prefix = "spring.druid")
    @Bean
    public DruidDataSource druidDataSource(){
        return new DruidDataSource();
    }

主要是添加 @ConfigurationProperties 注解

四：配置 druid 监控

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

    @Bean
    public ServletRegistrationBean statViewServlet(){
        ServletRegistrationBean servletRegistrationBean = new
            ServletRegistrationBean(new StatViewServlet(),"/druid/*");
        Map<String,String> initParams = new HashMap<String,String>(6);
        initParams.put("loginUsername","admin");
        initParams.put("loginPassword","admin");
        initParams.put("allow","");
        servletRegistrationBean.setInitParameters(initParams);
        return servletRegistrationBean;
    }

    @Bean
    public FilterRegistrationBean webStatFilter(){
        FilterRegistrationBean filterRegistrationBean = new
            FilterRegistrationBean(new WebStatFilter());
        filterRegistrationBean.addInitParameter("exclusions","*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
        filterRegistrationBean.addInitParameter("sessionStatEnable","true");
        filterRegistrationBean.addInitParameter("profileEnable","true");
        filterRegistrationBean.addInitParameter("principalCookieName","USER_COOKIE");
        						             filterRegistrationBean.addInitParameter("principalSessionName","USER_SESSION");
        filterRegistrationBean.addUrlPatterns("/*");
        return filterRegistrationBean;
    }

配置 StatViewServlet 和 WebStatFilter

Ⅲ：整合 Mybatis

其实注解版什么都不需要配置，只需要在接口上添加 @Mapper 注解，然后写接口，在接口上加注解，并写对应的 SQL 语句就可以了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

import com.feng.boot.mybatis.bean.Department;
import org.apache.ibatis.annotations.*;

/**
 * @author Lee
 */
@Mapper
public interface DepartmentMapper {

    /**
     * 根据 ID 查询 Department
     * @param id
     * @return
     */
    @Select("select * from department d where d.id = #{id}")
    Department getDeptById(Integer id);

    /**
     * 根据 ID 删除 Department
     * @param dId
     * @return
     */
    @Delete("delete from department d where d.id = #{id}")
    int deleteDepartment(Integer dId);;

    /**
     * 插入 Department
     * @param department
     * @return
     */
    @Options(useGeneratedKeys = true,keyProperty = "id")
    @Insert("insert into department(departmentName) value (#{departmentName})")
    int insertDepartment(Department department);

    /**
     * 更新 departmentName
     * @param department
     * @return
     */
    @Update("update department d set d.departmentName = ${departmentName} where d.id
            = ${id}")
    int updateSelective(Department department);

}


1

@Options(useGeneratedKeys = true,keyProperty = "id")

是为了返回插入数据库中的记录的主键

若在 Mapper 接口上不使用 @Mapper 标注，则需要在 mybatis 配置类上添加 @MapperScan 注解并指定 Mapper 接口所在包

1
2
3

@MapperScan(basePackages = {"com.feng.boot.mybatis.mapper"})
@Configuration
public class MybatisConfig {

使用配置文件 配置 mybatis 常用配置

1
2

mybatis.mapper-locations=com.feng.boot.mapper
mybatis.config-location=classpath:mybatis-config.xml

使用自定义配置 配置 mybatis 常用配置

1
2
3
4
5
6
7
8
9
10
11

@MapperScan(basePackages = {"com.feng.boot.mybatis.mapper"})
@Configuration
public class MybatisConfig {

    @Bean
    public ConfigurationCustomizer configurationCustomizer(){
        return (customizer) -> {
            customizer.setMapUnderscoreToCamelCase(true);
        };
    }
}

mybatis 全局配置文件和 mapper 配置文件使用

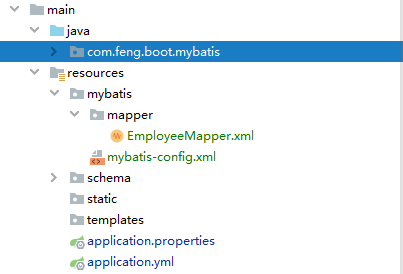

1566571270759

1
2

mybatis.mapper-locations=classpath:mybatis/mapper/*.xml
mybatis.config-location=classpath:mybatis/mybatis-config.xml

Ⅳ：整合 JPA

当然整合 JPA 是在已经配置好了数据源的前提下，我们这里就不展示数据源的配置了

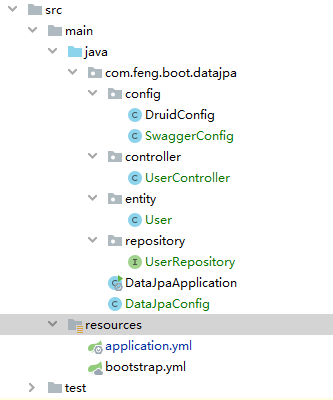

1566640074632

一：添加依赖

pom.xml

1
2
3
4

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

二：配置 jpa 和 hibernate

1
2
3
4
5

  jpa:
    show-sql: true
    hibernate:
      ddl-auto: update
      dialect: org.hibernate.dialect.MySQL57InnoDBDial

三：配置 jpa 扫描实体类包

1
2
3
4

@EntityScan(basePackages = {"com.feng.boot.datajpa.entity"})
@Configuration
public class DataJpaConfig {
}

四：编写实体类

1
2
3
4
5
6
7
8
9
10
11
12
13

@Entity
@Table(name = "tbl_user")
@Data
@Accessors(chain = true)
public class User implements Serializable {
    private static final long serialVersionUID = 5467023455095967635L;
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;
    private String userName;
    private Integer age;

}

五：编写 Repository 接口

1
2
3

public interface UserRepository extends JpaRepository<User, Integer> {
    User getUserById(Integer id);
}
